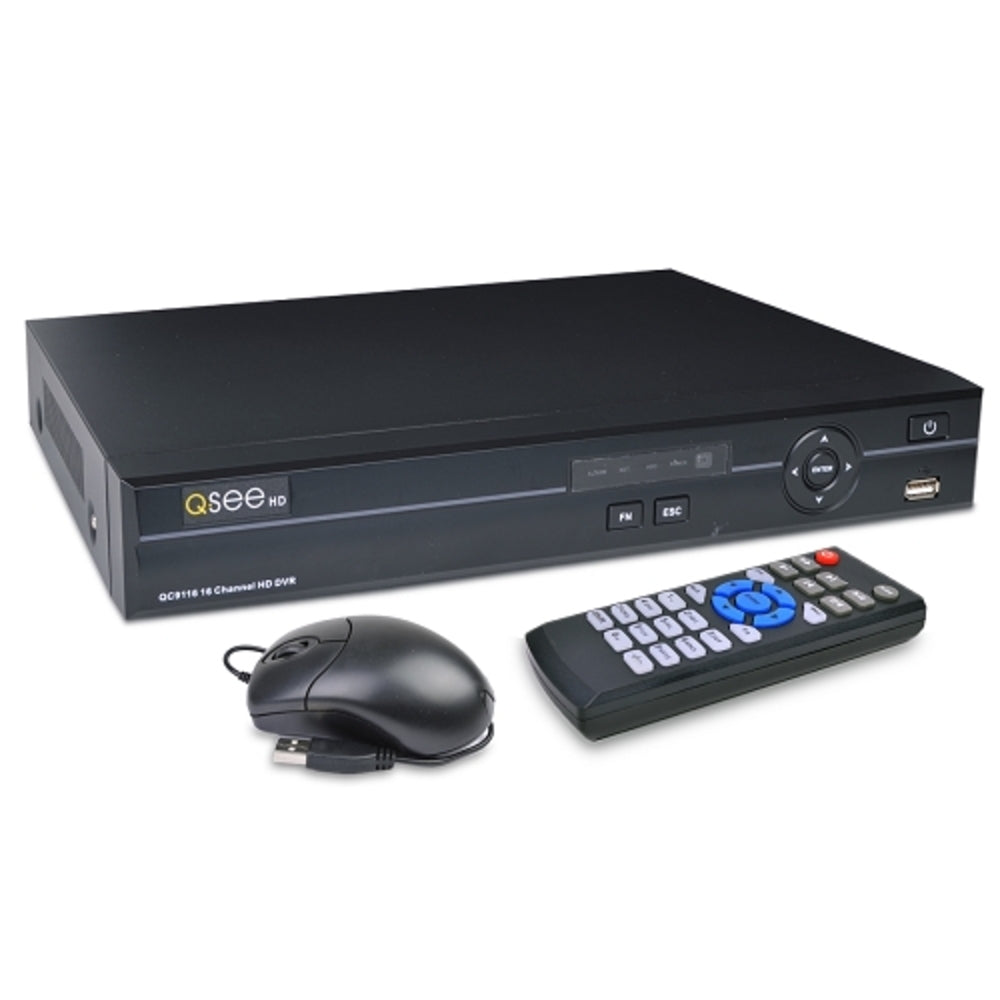

Q-See QC9116 16-Channel 2TB 1080p Network Digital Video Recorder w/Remote Access HDMI LAN & USB - Just Add Cameras
Regular price
$319.31
Sale
Q-See QC9116 16-Channel 2TB 1080p Digital Video Recorder
General Features:
Color: Black
16-channel DVR
2 Terabyte SATA HDD installed
Supports 1 SATA HDD up to 4 TB
Just add cameras
AnalogHD DVR Technology
Advanced H.264 Video Compression
Backup Via PC, Flash Drive, USB Hard Drive
Motion Detection, Time Schedule, and Manual
Resolutions: 720P (1280x720) at 15 FPS per channel 240FPS total, 960H (960x480) at 30 FPS per channel 480 FPS total, D1 (704x480) at 30 FPS per channel 480 FPS total
TSC/PAL signal system

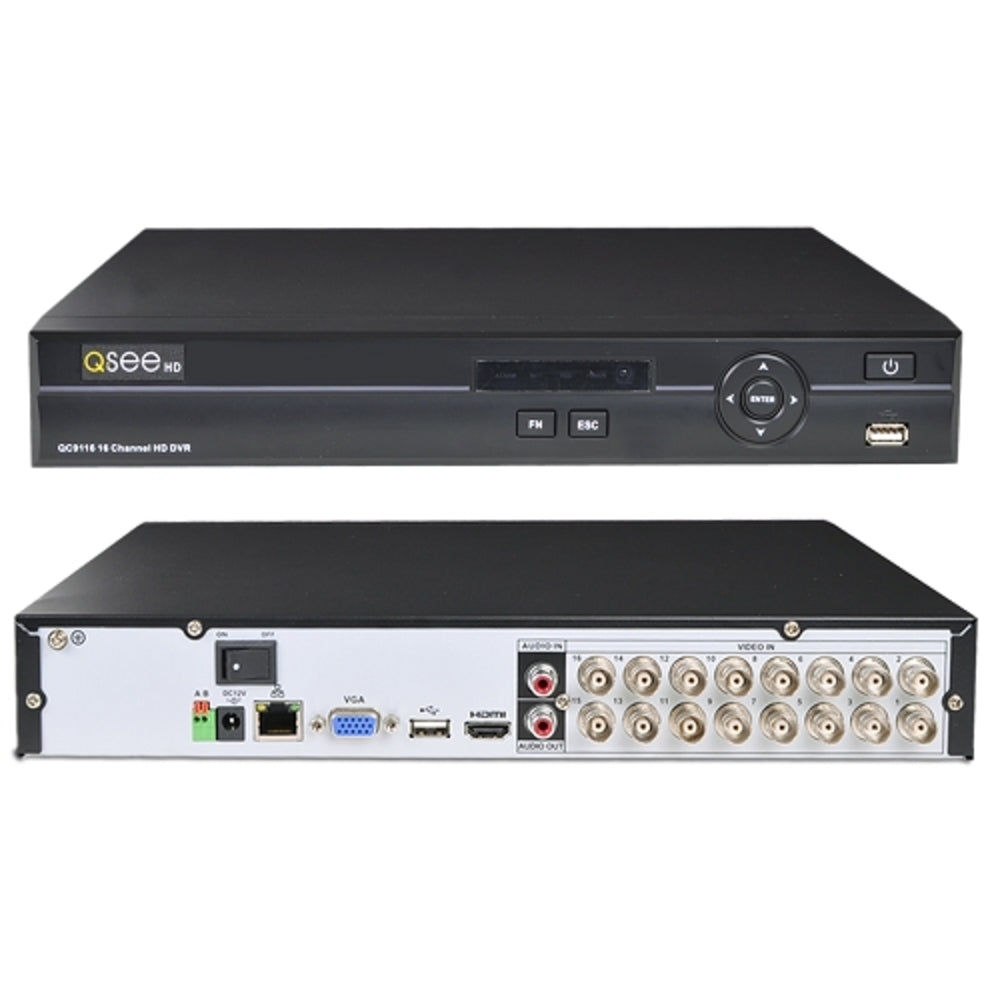

Front Features:
Power button
Power, HDD, NET, Alarm LEDs
Enter, Up, Down Right, Left buttons
FN button
Esc button
USB port
Rear Features:
Sixteen (16) BNC Video in ports
One (1) RCA Audio in port
One (1) RCA Audio out port
One (1) HDMI port
One (1) USB port
One (1) VGA port
One (1) LAN port
On/Off switch
PTZ
DC 12V power port
DVR:
Video Compression: H.264
Live Display Resolution: 1080p, 720p, 1280x1024, 1024x768, 800x600
Live Display FPS: 30 FPS
Display Modes: 1, 4, 8, 9, 16, Auto Sequence
Languages: English, French, Spanish
Recording Resolution Options:
1080p Resolution: 1920 x 1080 pixels
720P Resolution: 1280 x 720 pixels
960H Resolution: 960 x 480 pixels
D1 Resolution: 704 x 480 pixels
CIF Resolution: 352 x 240 pixels
Recording Modes:
Recording Modes: Manual, Time Schedule, Motion Detection, Alarm
Backup Methods: PC, Flash, USB Hard Drive
Playback on DVR:
Playback Speed: 720P at 30 FPS per channel 480 FPS total
960H at 30 FPS per channel 480 FPS total
D1 at 30 FPS per channel 480 FPS total
CIF at 30 FPS per channel 480 FPS total
umber Channels: 16 Simultaneous Local Playback
Remote Monitoring:
Scan 'N View: Yes
Dual Stream: CIF @ 30FPS, D1 @ 15FPS
Simultaneous Users: 128 (bandwidth permitting)
Compatibility:
Application Support: QC View
Mobile Support: iPhone, iPad, Android
Computer Support: WinXP, Vista, Win7/8, Mac OS 10.7/10.8/10.9/10.10
